IN THE MARKET FOR AN EVOH SUPPLIER?

    Announcement

We are happy to announce that we have 3 new product grades available.

Scroll down to see the product info
ETHYLENE VINYL ALCOHOL (EVOH) FROM GANTRADE  MEANS THREE THINGS:
  • Consistently High Quality
  • Readily Available From Our U.S.  Warehouses
  • Technical Support From Knowledgable Professionals
KEY ENHANCEMENTS USING OUR EVASIN EVOH:
  • Excellent Oxygen Barrier
  • Excellent Flavor Barrier
  • Low Gel Performance
  • Excellent Oil & Solvent Resistance
3 New Product grades
GANTRADE CAN PROVIDE THE FOLLOWING:
  • Application Information
  • TDS, SDS,& COAs
  • Samples & Price Quotations
CONTAINER SIZES
  • Gaylord Boxes
  • 25 Kg Bags

Our Ethylene Vinyl Alcohol (EVOH) Product Line:

Grade 1) Ethylene Content Density Tm Tg MFI OTR 3) Application 4)
Mole % g/cm3 °C °C g/10 min 2)
EV2751F 27 1.19 190 63 4 0.1 Cast film, Blown film
EV2904 F or V 29 1.2 188 65 8.5 0.3 Cast film, Pipe, Bottles
EV2951 F or V 29 1.2 188 65 3 0.3 Cast Film, Blown Film, Pipe, Bottles
EV2951FR 29 1.17 188 62 1.8-4.2 0.5 Retort Grade, Film, Bottles
EV3251 F or V 32 1.19 183 62 1.6 0.4 Cast film, Blown film, Sheet, Blow molding, Tube
EV3251FT 32 1.17 183 57 4.3 0.5 Sheet & Thermoforming
EV3851 F or V 38 1.17 173 58 1.6 0.7 Cast film,Blown film, Sheet, Blow molding
EV4405 F or V 44 1.14 165 55 1.14 1.5 Sheet, Film, Tubes
EV4451 F or V 44 1.14 167 56 2 1.35 Film, Molding, Thermoforming




1) F: EVOH with Lubricant ; V: EVOH without Lubricant
2) 210°C, 2160g for EV2904 F/V and EV2951FR; 190°C, 2160g for the rest of grades
3) 20 °C, 65%RH, ISO14663-2, unit:  cc 20um/m2-day-atm
4) Food contact regulatory status EVASIN contains no heavy metals or other harmful substances, and meets the standards of FDA 21, C.F.R. Section 177.1360. / European Commission Directive No. 10/2011



We are happy to announce that we have 3 new product grades available. To jump down to the new product info, click on their links below!

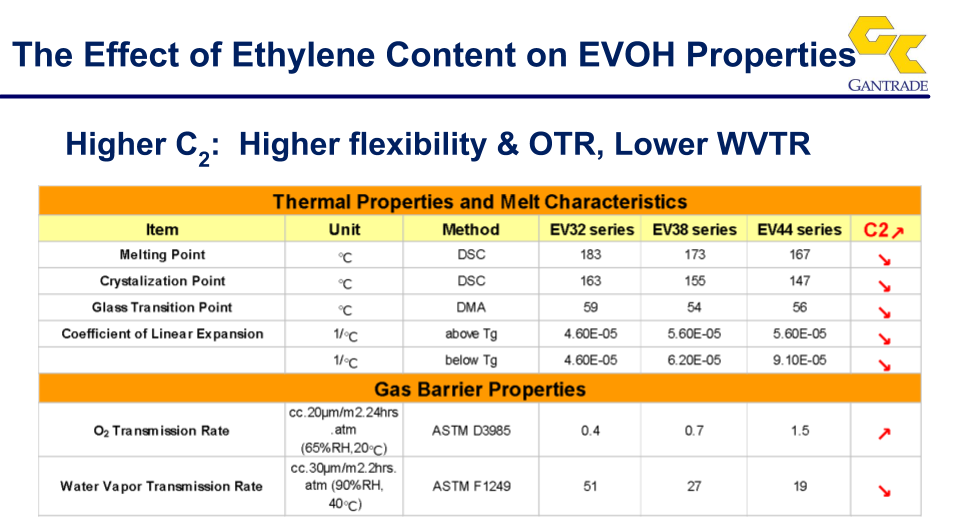

evasin evoh properties



Want to know more? Fill out the form and we'll get in touch!



EVASIN EV2951FR - 29 mole% Ethylene Vinyl Alcohol Copolymer

Application
EVASIN EV2951FR is specially designed for retort application. This resin can reduce the haze and lamination problems after retorting.

General Properties

Item Unit Test Method Value
Mechanical Properties
Tensile Strength at Yield MPa ISO 527 81.8
Tensile Strength at Break MPa ISO 527 30.4
Elongation at Break % ISO 527 20.7
Young's Modulus MPa ISO 527 4,360
Flexural Modulus MPa ISO 178 3,720
Flexural Strength MPa ISO 178 124
Charpy Impact Strength KJ/m2 ISO 179-1 2.57
Rockwell Hardness M ISO 2039-2 87
Density g/cm3 ISO 1183 1.17
Thermal Properties and Melt Characteristics
Melting Point °C ISO 11357 188
Crystallization Point °C ISO 11357 163
Glass Transition Point °C ISO 11357 62
Vicat Softening Point °C ISO 306 177
Melt Flow Index g/10min (2160g, 210°C) ISO 1133 1.8-4.2
g/10min (2160g, 230°C) ISO 1133 4.5-7.5
Gas Barrier Properties
O2 Transmission Rate at
20°C   65% RH		 cm3.20µm/m2.24Hrs.atm ISO 14663-2 0.45-0.55



EVASIN EV3251FT - 32 mole% Ethylene Vinyl Alcohol Copolymer

Application
EV3251FT is a standard grade mainly designed for thermoforming applications. This resin can provide more flexibility during stretch processing. After modification, EVASIN EV3251FT still has excellent barrier properties to various gases. This resin also shows excellent thermal stability on long run process.

General Properties

Item Unit Test Method Value
Mechanical Properties
Tensile Strength at Yield MPa ISO 527 79
Tensile Strength at Break MPa ISO 527 31
Elongation at Break % ISO 527 18.3
Young's Modulus MPa ISO 527 4,430
Flexural Modulus MPa ISO 178 3,970
Flexural Strength MPa ISO 178 114
Charpy Impact Strength KJ/m2 ISO 179-1 2.6
Rockwell Hardness HRM ISO 2039-2 90
Density g/cm3 ISO 1183 1.17
Thermal Properties and Melt Characteristics
Melting Point °C ISO 11357 183
Crystallization Point °C ISO 11357 155
Glass Transition Point °C ISO 11357 57
Vicat Softening Point °C ISO 306 164
Melt Flow Index g/10min (2160g, 190°C) ISO 1133 2
g/10min (2160g, 210°C) ISO 1133 4.3
Gas Barrier Properties
O2 Transmission Rate
20°C   0% RH
20°C   65% RH
20°C   85% RH		 cm3.20µm/m2.24Hrs.atm ISO 14663-2
0.35
0.5
1.8
Water Vapor Transmission Rate cm3.30µm/m2.24Hrs.atm
at 40°C 90%RH		 ASTM E96-E 50



EVASIN EV2751F - 27 mole% Ethylene Vinyl Alcohol Copolymer

Application
EV2751F is a high barrier grade designed for co-extrusion cast or blown applications. This resin can also be used in bottle & pipe applications.

General Properties

Item Unit Test Method Value
Mechanical Properties
Tensile Strength at Yield MPa ISO 527 84.9
Tensile Strength at Break MPa ISO 527 20.7
Elongation at Break % ISO 527 13
Young's Modulus MPa ISO 527 4,970
Flexural Modulus MPa ISO 178 4,270
Flexural Strength MPa ISO 178 127
Charpy Impact Strength KJ/m2 ISO 179-1 2.93
Rockwell Hardness M ISO 2039-2 92
Density g/cm3 ISO 1183 1.19
Thermal Properties and Melt Characteristics
Melting Point °C ISO 11357 190
Crystallization Point °C ISO 11357 164
Glass Transition Point °C ISO 11357 63
Vicat Softening Point °C ISO 306 177
Melt Flow Index g/10min (2160g, 210°C) ISO 1133 4.0
g/10min (2160g, 230°C) ISO 1133 4.5-7.5
Gas Barrier Properties
O2 Transmission Rate
20°C   0% RH
20°C   65% RH
20°C   85% RH		 cm3.20µm/m2.24Hrs.atm ISO 14663-2
Annex C
0.05
0.1
0.8
Water Vapor Transmission Rate cm3.30µm/m2.24Hrs.atm
at 40°C 90%RH		 ASTM E96-E ---
